Respironics Millennium M 10 Liters Oxygen Concentrator
Respironics Millennium M 10 Liters Oxygen Concentrator

Respironics Millennium M 10 Liters Oxygen Concentrator

Brand/Manufacturer: RESPIRONICS
Save
Authorized Retailer Badge
  • Prescription required

This product is on backorder and will be available to purchase once it is back in stock.

Respironics Millennium M10 Oxygen Concentrator delivers up to 10LPM of oxygen and provides oxygen at higher liter flow and has fewer parts. It is designed to be the highest performing and most reliable oxygen machine. The highly durable casters are designed to withstand rigorous usage. Protective tubing neatly guards the electronic wires and tubing - double fault against electric shock. The integrated sieve canister reduces tubing connections to enhance bed life.

Highlights of Respironics Millennium M10

  • High oxygen output
  • Integrated Sieve Canister
  • With or without Oxygen purity indicator

Note: Prescription can be emailed or faxed to 1.203.616.2851. To email please: Click Here


Price Match Guarantee


PayPal Credits6 Payments: Starts From $189.99

Give me a Better Price

Millennium M10 Features

What to buy with Millennium M10?


How To Use Respironics Millennium M10?

  • select a location that allows the concentrator to draw in room air without being restricted. Make sure that the device is at least 3 inches away from walls, furniture, and especially curtains that could impede adequate airflow to the device. Do not place the device near any heat source
  • plug the power cord into an electrical outlet.

Plug the power cord


  • Connect the oxygen tubing to the oxygen outlet port.

Tubing to the oxygen outlet


  • Press the power switch to the On [ I ] position. Initially, all the indicator lights will turn on and the audible alarm will sound for a few seconds. After that time, only the green indicator should remain lit.

Press the power switch


  • After turning on the device, you should allow at least 10 minutes for the device to warm up.
  • Adjust the flow to the prescribed setting by turning the knob on the top of the flow meter until the ball is centered on the line marking the specific flow rate.
  • Be sure oxygen is flowing through the cannula. If it is not, refer to the Troubleshooting section.
  • Put the cannula on as directed by your home care provider.
  • When not using the device, press the power switch to the Off [O] position.

How to clean Millennium M10 Concentrator?

Cleaning the air inlet filter is the most important maintenance activity that you will perform and should be done at least once a week.

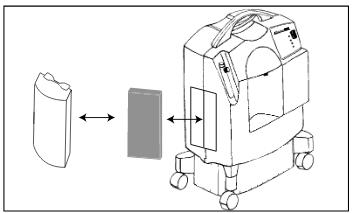

Cleaning the air inlet filter


  1. Remove the filter cap.
  2. Remove the filter from the cabinet.
  3. Visually inspect the filter for damage, such as holes or tears.
  4. If damaged, replace with a new filter. Contact your health care provider for a new filter if necessary.
  5. Rinse and wash the filter in warm water. A mild detergent may be used if rinsed thoroughly.
  6. Squeeze out the excess water and allow the filter to air dry. The filter should be completely dry before using again. Excess moisture may impair the proper operation of the device.
  7. Visually inspect the filter after cleaning. Make sure it is not damaged or clogged.
  8. Reinsert the filter on the cabinet.
  9. Reinstall the filter cap.

M10 Oxygen Concentrator Specifications

Particulars

Specifications

Flow Rate

10LPM in 1 liter increments

Electrical Requirements

120V/60Hz (±10%)

Oxygen Percentage Indicator

Green light greater than 82%
Yellow light between 70 to 82%
Red light less than 70%

Oxygen Concentration

92 +/– 4% @ 8 to 10LPM
94 +/– 2% @ 3 to 7LPM
92 +/– 4% @ 1 to 2LPM

Weight

53 +/- 0.5lb

Dimensions

27"H x 19"W x 13"D

Storage/Transport Temperature

-30 to 160°F

Operating temperature

55°F to 90°F

Storage/Transport Humidity

Up to 95%, non-condensing

Operating Pressure

10 to 30 psig

Alarm Indicators

High system pressure, Low system pressure, Power failure, Low oxygen level, No oxygen flow


Oxygen Concentrator Warranty

One year standard, Optional two years (excludes compressor), Optional two year compressor.

Customer Reviews

Questions & Answers




question image
What  is  the  noise  level ?
Randy Briscoe - 5/11/2018 10:13:26 PM
answer image
"The Respironics Millenium M10 Oxygen Concetrator is limited to the sound of 50 decibels which is quieter than a normal conversation. "
Customer Care - 6/20/2018 7:32:49 AM
