Drive Fish Pediatric Compressor Nebulizer
Drive Fish Pediatric Compressor Nebulizer

Drive Fish Pediatric Compressor Nebulizer

Brand/Manufacturer: DRIVE MEDICAL
Save
Authorized Retailer Badge
  • Prescription required
  • FSA Approved

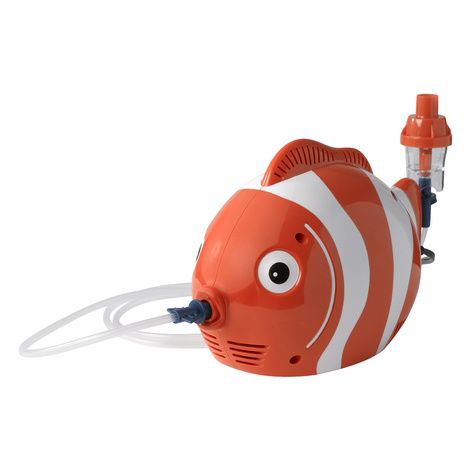

Drive Fish Pediatric Compressor Nebulizer features the child-friendly design and is quiet and dependable, operating with a powerful piston pump for fast treatment times. The thoughtful design and rubber pads on the bottom of the Fish Neb help keep the compressor stable on tabletops during treatments. The cup holder is incorporated into the design of the tail, for that time between treatments. It is lightweight and easy to transport so the child may take therapy whenever needed.

Item #DescPkgRewardPrice
18090-FS With Disposable Neb Kit Each $2.45
$84.99
$48.99
18091-FS With Reusable and Disposable Neb Kit Each $2.65
$86.99
$52.99

Features

  • Drive Fish Pediatric Compressor Nebulizer comes complete with:
    - Disposable neb kit
    - Mouth-piece,
    - Pediatric aerosol mask
    - Carry bag
    - Replacement filters
    - Instructions
  • Easy to replace filter
  • Disposable neb kit includes
    - 7 feet tubing
    - T adaptor
    - Nebulizer or medication cup
    - Reservoir tube
  • Click Here For Manual
  • Also available (sold separately) :
    Drive Disposable Nebulizer Kit (Code : NEBKIT500)

Note: Prescription can be emailed or faxed to 1.203.616.2851. To email please: Click Here

More Information

  • To reduce the risk of electrocution
    - Always unplug this product immediately after using
    - Do not use while bathing
    - Do not place or store product where it can fall or be pulled into a tub or sink
    - Do not place in or drop into water or other liquid
    - Do not reach for a product that has fallen into water. Unplug immediately
  • To reduce the risk of burns, electrocution, fire or injury to persons
    - The product should never be left unattended when plugged in
    - Close supervision is necessary when this product is used by, on, or near children or disabled individuals
    - Use this product only for its intended use as described in this guide. Do not use attachments not recommended by the manufacturer
    - Never operate this product if
    • It has a damaged power cord or plug
    • It is not working properly
    • It has been dropped or damaged
    • It has been dropped into water
    - Keep the power cord away from heated surfaces
    Never block the air openings of the product or place it on a soft surface, such as bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like
    - Never use while drowsy or asleep
    - Never drop or insert any object into any opening or hose
    - Do not use outdoors. This product is for household use only
    - DO NOT use this product in or near explosive atmospheres, or where aerosol (spray) products are being used
    - DO NOT pump combustible liquids of vapors with the product or use in or near an area where flammable or explosive liquids of vapors may exist
    - DO NOT operate this product in an oxygen enriched environment, i.e. oxygen tent or oxygen hood
    - Use only in well ventilated areas
    - Do not use this product with a DC to AC converter, or with any AC voltage and/or frequency other than specified
    - Do not operate unit in a backpack or carrying bag
    - Care should be taken when this product is used in the vicinity of other electronic equipment concerning the possible interference between them. They may need to be moved apart
    - Use caution when plugging in and unplugging device. Do not allow jewelry or other metal items to contact plug
    - Warning: This product contains small parts that may represent a choking hazard
    - The device does not need to be calibrated
    - Do not position the equipment so that it is difficult to operate
    - To avoid strangulation and entanglement, keep power cord and air tubes out of reach of young children
    - The air filter shall not be serviced or maintained while the compressor is in use
  • What are Compressor Nebulizer Systems Used For?
    - People with breathing problems, such as Asthma, Chronic Obstructive Pulmonary Disease (COPD) or Cystic Fibrosis are often prescribed medicines that minimize or control symptoms of their disease
    - Compressor Nebulizer Systems are a means of delivering these prescribed medications to the lungs
    - These medications and the compressor nebulizer systems should be used as directed by a physician to maximize benefits
    - Compressor Nebulizer systems can be prescribed for use everyday or periodically as symptoms present themselves, such as the springtime when Hay Fever or Allergies are normally present
  • Daily Use Operation
    - Before each use inspect the Compressor and nebulizer cup assembly for damage or wear, replace as needed
    - Place the Compressor on a table or other flat stable surface. Be sure you can easily reach the controls when seated. Do not use this device on the floor
    - With the power switch in the O (OFF) position, plug the power cord into an appropriate electrical wall outlet
    - Connect one end of the tubing to the compressor air-outlet connector
    - Assemble the nebulizer cup and add indicated medication to the nebulizers cup before use
    - Attach the other end of the tubing into the air-inlet connector found at the bottom of the nebulizer cup
    - Turn on the Compressor by pressing the power switch to the I (ON) position and begin treatment
    - If treatment needs to be interrupted, simply press power switch to O (OFF) position
    - When the treatment is complete, turn off the compressor by pressing the power switch to O (OFF) position and unplug the unit from the electrical outlet
    - Always unplug this device immediately after use
    - DO NOT use this product in or near explosive atmospheres, or where aerosol (spray) products are being used
    - DO NOT pump combustible liquids of vapors with the product or use in or near an area where flammable or explosive liquids of vapors may exist
    - DO NOT operate this product in an oxygen enriched environment, i.e. oxygen tent or oxygen hood
    - Use only in well ventilated areas
  • Nebulizer Cleaning
    Clean After Every Use

    - With power switch in the Off position, unplug power cord from wall outlet
    - Disconnect tubing from the air-inlet connector and set aside
    - Disassemble mouthpiece or mask from cap. Open nebulizer by turning cap counterclockwise and remove baffle
    - Wash all items, except tubing, in a hot water/dishwashing detergent solution. Rinse under hot tap water for 30 seconds to remove detergent residue. Allow to air dry
    - For reusable nebulizer only, it can be cleaned daily in dishwasher using top shelf or by following the above cleaning procedure
  • Disinfect Daily
    - Using a clean container or bowl, soak items in three parts hot water to one part white vinegar for 30 minutes OR use a medical bacterial-germicidal disinfectant available through your provider. Be sure to follow manufacturers instructions carefully
    - With clean hands, remove items from disinfectant solution, rinse under hot tap water, and air dry on a clean paper towel. Store in a zip-lock bag
  • Compressor Cleaning
    - With power switch in the Off position, unplug power cord from wall outlet
    - Wipe outside of the compressor cabinet with a clean damp cloth every few days to keep dust-free
  • Maintenance
    - All maintenance must be performed by a qualified Drive provider or authorized service center

Specification

ParticularsSpecifications
Operating Voltage120VAC, single phase, 60Hz
Power Consumption110W Max
Storage/Transport Temperature Range-25 to 70°C (-13 to 158°F)
Storage/Transport Humidity10 – 95%
Operating Humidity15 – 95% non-condensing
Operating Temperature Range10 to 40°C (50 to 104°F)
Compressor Free Air Flow8 lpm or greater
Max Pressure30 psig / 206 KPa or greater
Operating Pressure Range10 psig or greater
Operating Noise Level< 63 dBA
Method of NebulizationPiston Compressor
Particle Size0.5 µm to 10 µm
Unit Dimensions5.25" (W) x 6.75" (H) x 9.25" (D)
Weight3.1 lbs.

Warranty

5 year limited warranty
