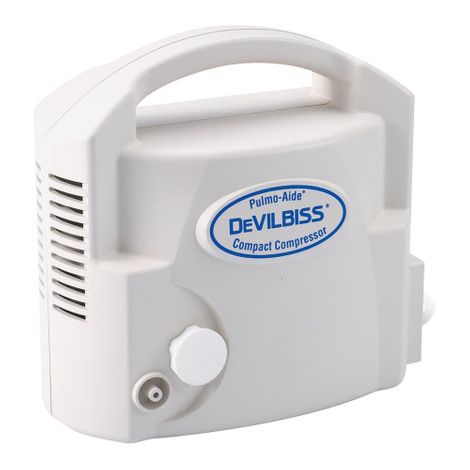

DeVilbiss Pulmo-Aide Compact Compressor Nebulizer System 3655D
DeVilbiss Pulmo-Aide Compact Compressor Nebulizer System 3655D

DeVilbiss Pulmo-Aide Compact Compressor Nebulizer System 3655D

Brand/Manufacturer: DEVILBISS
Save
Authorized Retailer Badge
  • FSA Approved
  • Latex Free
  • Made in USA

DeVilbiss Pulmo-Aide Compact Compressor Nebulizer System works to convert the medication to a high-quality mist of fine particles that penetrates deep into the lungs. It is a small footprint unit which allows for therapy at home or can be easily transported for AC use while on the go. Features ease-of-use and reliable operation. The Pulmo-Aide Compact is the perfect solution for those patients seeking a quality, effective treatment from a compressor with a small footprint design.

Item #DescPkgRewardPrice
3655D DeVilbiss Pulmo-Aide With Disposable Nebulizer Each $0.64
$55.99
$31.99

Features

Note: Prescription can be emailed or faxed to 1.203.616.2851. To email please: Click Here

More Information

  • To reduce the risk of electrocution
    - Always unplug this product immediately after using
    - Do not use while bathing
    - Do not place or store product where it can fall or be pulled into a tub or sink
    - Do not place in or drop into water or other liquid
    - Do not reach for a product that has fallen into water. Unplug immediately
  • Warning
    To reduce the risk of burns, electrocution, fire or injury to persons

    - The product should never be left unattended when plugged in
    - Close supervision is necessary when this product is used by, on, or near children or physically incapacitated individuals
    - Use this product only for its intended use as described in this guide. Do not use attachments not recommended by the manufacturer
    - Never operate this product if:
    • It has a damaged power cord or plug
    • It is not working properly
    • It has been dropped or damaged
    • It has been dropped into water
    - Return the product to an authorized DeVilbiss service center for examination and repair
    - Keep the power cord away from heated surfaces
    - Never block the air openings of the product or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like
    - Never use while drowsy or asleep
    - Never drop or insert any object into any opening or hose
    - Do not use outdoors. This product is for household use only
    - Do not use in an oxygen enriched environment
    - Do not operate unit in a backpack or carrying bag
    - Care should be taken when this product is used in the vicinity of other electronic equipment concerning the possible interference between them. They may need to be moved apart
  • How to Operate compressor
    - Place compressor on a level, sturdy surface so that the controls can be easily reached when seated. Never block the air openings of the product or place it on a soft surface, such as a patients lap or a bed or couch where the air openings may be blocked
    - Make sure the power switch is in the Off position
    - Unwrap power cord and plug power cord into an appropriate wall outlet. Plug model 3655 into a grounded wall outlet
    - Wash hands
    - Connect one end of the nebulizer tubing to the compressor air-outlet connector Assemble clean nebulizer and add prescribed medication
    - Assemble mouthpiece, t-piece, and corrugated tubing (if applicable) and insert into the top of the nebulizer cap. If using an aerosol mask, insert the bottom part of the mask directly into the top of the nebulizer cap
    - Attach tubing to nebulizer air-inlet connector
    - Press the power switch On to start the compressor
    - Begin treatment by placing the mouthpiece between teeth. With mouth closed, inhale deeply and slowly through mouth as aerosol begins to flow, then exhale slowly through the mouthpiece. If treatment needs to be interrupted, simply press power switch Off.
    - If an aerosol mask is used, place the mask over mouth and nos. As aerosol begins to flow, inhale deeply and slowly through mouth, then exhale slowly
    - When treatment is complete, turn unit off by pressing the power switch to the Off position. Unplug the unit from the wall power outlet
  • Nebulizer Cleaning
    - All parts of the nebulizer, except tubing, should be cleaned according to the following instructions. Your physician and/or DeVilbiss provider may specify a certain cleaning procedure. If so, follow their recommendations
  • Clean
    After Every Use

    - With power switch in the Off position, unplug power cord from wall outlet
    - Disconnect tubing from the air-inlet connector and set aside
    - Disassemble mouthpiece or mask from cap. Open nebulizer by turning cap counterclockwise and removing baffle
    - Wash all items, except tubing, in a warm water/dishwashing detergent solution. Rinse under warm tap water for 30 seconds to remove detergent residue. Allow to air dry
    - For reusable nebulizer only, clean daily in dishwasher using top shelf
  • Disinfect Daily
    - Using a clean container or bowl, soak items in three parts warm water (131˚F-149ºF/55˚C-65˚C) to one part white vinegar (>=5% acetic acid concentration) for 30 minutes OR use a medical bacterial-germicidal disinfectant available through your provider. Be sure to follow manufacturer’s instructions carefully
    - With clean hands, remove items from disinfectant solution, rinse under warm tap water, and air dry on a clean paper towel. Store in a zip-lock bag

Specification

ParticularsDimensions
Size7.5" W x 4.0" H x 7.2" D
Electrical requirements2.5amps, 115VAC 60Hz
Sound level58-62 dBA
Power consumption140W maximum
Maximum compressor pressur35 psig
Compressor free air flow13 lpm
Operating temperature range+40° to +104°F (+5 to +40°C)
Operating Humidityup to 95% non-condensing
Storage/Transport Temperature Range-40° to +158°F (-40° to +70°C)
Supplied Nebulizer Nebulization Rate0.15 ml/min or greater
Supplied Nebulizer MMAD5 microns or less
Supplied nebulizer capacity10 ml (cc)
Supplied Nebulizer Operating Pressure12 psig (min)

Warranty

Five Year Warranty: DeVilbiss Compressor models are warranted to be free from defective workmanship and material for a period of five years from the date of purchase. Any defective parts will be repaired or replaced at DeVilbiss option if the unit has not been tampered with or used improperly during that period. Make certain that any malfunction is not due to inadequate cleaning or failure to follow the instructions.

Customer Reviews

Questions & Answers




question image
Is the a way to Ajust how much of air comes out because my baby is only 3 months
Samantha - 5/25/2018 9:52:07 AM
facebooktwittergplus
answer image
No. DeVilbiss Pulmo-Aide Nebulizer System has a compressor free air flow of 13 lpm. If you want to interrupt the treatment, simply press power switch "Off".
Customer Care - 5/26/2018 8:34:46 AM
question image
I have my unit connected but it does not seem to be using the medication.  The amount stays the same after 4-5 minutes   It has been at least a  year since I have used it and I am stumpted?
Earla M Simonson - 12/11/2015 10:22:36 AM
facebooktwittergplus
answer image
Thank you for reaching out to us. The product has a limited warranty of 5 years. You can contact the manufacture, they will help you resolve your query.
Customer Care - 12/12/2015 1:04:19 AM
question image
I have the 3655D model...are u supposed to remove the white filter knob when using?
Jodi - 10/8/2015 8:11:44 PM
facebooktwittergplus
answer image
No- that is the filter and should be in the unit when utilizing it. This filter should also be replaced when it becomes discolored. Hope that helps.
Customer Service - 10/16/2015 1:29:45 AM
question image
using 2 vials how long does the treatment last using item # 3655D
betty - 4/9/2015 12:32:41 PM
facebooktwittergplus
answer image
Thank you for reaching out to us. Usually a vial take 15 – 20 minutes for a treatment. Our units are to be run 30 minutes on and 30 minutes off. It would probably be best to do one treatment and wait 30 minutes and do the other.
Customer Care - 4/10/2015 8:09:13 AM
question image
Does it come with tubing, mouthpiece etc???

Joanne - 4/6/2015 3:20:05 PM
facebooktwittergplus
answer image
this is to Customer Care: what item number on your site is the replacement kit that can be bought?
Dawson - 1/20/2017 1:42:21 AM
answer image
The item# of the replacement kit is 3655D-621.
Customer Care - 1/13/2016 11:25:15 PM
answer image
Thank you for reaching out to us. When you purchase the 3655D it does come ready to use with (1) disposable nebulizer kit, which is the tubing , medicine cup and mouth-piece. This kit should be replaced at least every 2-4 weeks.
Customer Care - 4/7/2015 11:02:40 PM
