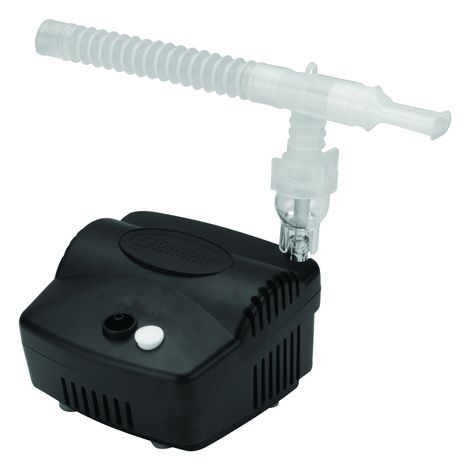

Devilbiss PulmoNeb LT Compressor Nebulizer System
Devilbiss PulmoNeb LT Compressor Nebulizer System

Devilbiss PulmoNeb LT Compressor Nebulizer System

Brand/Manufacturer: DEVILBISS
Save
Authorized Retailer Badge
  • FSA Approved
  • Made in USA

Devilbiss PulmoNeb LT Compressor Nebulizer System is easy for new and young patients alike to operate. Its profile is sleek, compact and lightweight which makes it easy to store and transport. Internal wire guides eliminate interference with moving parts increasing reliability. The one-piece MicroPore filter is readily accessible and has a six-months life.

Item #DescPkgRewardPrice
3655LT With VixOne Disposable Nebulizer Each $1.70
$52.99
$33.99
3655LTR With VixOne Disposable and Reusable Nebulizer Each $1.45
$51.99
$28.99

Features

  • Devilbiss PulmoNeb LT Compressor Nebulizer System is easy to use
  • Darker body color maintains its appearance after a prolonged period of use
  • Maximum compressor pressure: 35 psi
  • Compressor free air flow: 12.7lpm
  • Tested to at least 1000 hours of life
  • Small footprint and lightweight design make it easy to store and take along
  • Top of unit connector facilitates easy attachment/removal of tubing
  • Includes an instructional DVD to enhance patient knowledge about the unit
  • Ball bearing connecting rod design equips the unit for years of dependable performance
  • Internal wire guides eliminate interference with moving parts for increasing reliability
  • ETL listed as compliant to UL 60601-1 Medical Electrical Equipment Standard
  • One-piece porous polymer filter is readily accessible and has six-month life
  • VixOneTM Nebulizer:
    - Produces an aerosol with an MMAD of 2.7 microns
    - Respirable Fraction – 84% below 5 microns
    - Low residual volume (0.7cc) reduces medication waste
    - High-capacity medication bowl (>10cc) accommodates varying therapy protocols
    - Nebulizes in an upright position or at angles up to 45,° allowing patients to receive treatment in their most comfortable position
    - Anti-spill tee design provides a secure seal
  • Click Here For Instruction Guide
  • Also available (separately):
    - Devilbiss Replacement Filters for PulmoNeb LT Compressor Nebulizer System (Code 3655LT-601)
    Devilbliss VixOne Reusable Nebulizer (Code : 900D-610)
    Devilbiss VixOne Disposable Nebulizer (Code : 3655D-621)

Note: Prescription can be emailed or faxed to 1.203.616.2851. To email please: Click Here

More Information

  • How To Operate Compressor
    - Ensure the power switch is in the O off position
    - Place compressor on a level, sturdy surface. Never block air vents. Never place compressor on a soft surface, such as a patient;s lap, or a bed or couch, where the air openings may be blocked
    - Plug power cord into wall outlet
    - Wash hands
    - Connect one end of the nebulizer tubing to the compressor air outlet connector.
    - Note - During high-humidity weather conditions, condensation (water build up) can occur in the nebulizer tubing
    - Assemble nebulizer as shown. If using an aerosol mask, insert the bottom part of the mask directly into the top of the nebulizer cap
    - Press the power switch to start compressor
    - Place the mouthpiece between teeth. With mouth closed, inhale deeply and slowly through the mouth as aerosol begins to flow, then exhale slowly through the mouthpiece. If treatment needs to be interrupted, simply press power switch and place the nebulizer into nebulizer holder
    - If an aerosol mask is used, place the mask over mouth and nose. As aerosol begins to flow, inhale deeply and slowly through mouth, then exhale slowly
    - When treatment is complete, turn unit off. Unplug unit from wall outlet
  • Nebulizer Cleaning
    - Disassemble nebulizer
    - Wash all items, except tubing, in a hot water/dishwashing detergent solution. Rinse under hot tap water for 30 seconds to remove detergent residue. Allow to air dry
  • Disinfect Daily
    - Using a clean bowl, soak items in three parts hot water (131ºF-149ºF/55ºC-65ºC) to one part white vinegar (>=5% acetic acid concentration) for 30 minutes OR use a medical bacterial-germicidal disinfectant. Be sure to follow manufacturers instructions carefully
    - With clean hands, remove items, rinse under hot tap water, and air dry. Store in a zip-lock bag.
    - Note - Do not towel dry nebulizer parts; this could cause contamination
    - Keep the outer surface of the tubing dust-free by wiping regularly. Nebulizer tubing does not have to be washed because only filtered air passes through it. - Note - Replace your DeVilbiss primary reusable nebulizer every 6 months. Disposable nebulizer (often used as a backup) should be replaced at least every 15 days. To ensure consistent operating specifications, replace with DeVilbiss nebulizer
  • Compressor Cleaning
    - With power switch in the O off position, unplug power cord from wall outlet
    - Wipe outside of the compressor cabinet with a clean damp cloth every few days to keep dust-free
  • Filter Change
    - Filter should be changed every 6 months or sooner if filter discolors
    - Remove the filter by grasping it firmly and pulling out of the unit. Discard old filter
  • Maintenance
    - All maintenance must be performed by a qualified DeVilbiss provider

Specification

ParticularsDimensions
Size5.75"W x 4"H x 6"D
Weight2.75lb
Electrical Requirements1.2 amps, 115 VAC (±10%) 60 Hz
Sound Level56 dBA
Power Consumption80watts maximum
Maximum Compressor Pressure30psig or greater
Compressor Free Air Flow12.7lpm
Operating Temperature Range+40° to +104°F (+5 to +40°C)
Operating Humidityup to 95% non-condensing
Storage/Transport Temperature Range-40° to +158°F (-40° to +70°C)
Storage/Transport Humidityup to 95% non-condensing
Supplied Nebulizer Capacity6 ml (cc)
Supplied Nebulizer Nebulization Rate0.15 ml/min
Supplied Nebulizer MMAD5 microns or less

Warranty

5 year limited warranty

Customer Reviews

Questions & Answers




question image
can you use an adapter for the car lighter to run this machine?
Mamie - 9/7/2016 2:46:20 PM
facebooktwitter
answer image
Do not use PulmoNeb LT Compressor with a DC to AC converter, or with any AC voltage and/or frequency other than specified. However We have DeVilbiss Traveler Portable Compressor Nebulizer System that can safely run on both AC and DC and battery power and is perfect for traveling.
Customer Care - 11/19/2016 12:17:13 AM
question image
my mother uses your nebulizer she needs to fly and won't go without having one. What battery one would you recommend?
Kathleen - 12/5/2015 7:51:52 AM
facebooktwitter
answer image
Thank you for inquiry. The Devilbiss PulmoNeb LT is tested to at least 1000 hours of life. Battery is not required.
Customer Care - 12/7/2015 12:17:22 AM
question image
Does it run on battery or electricity and can a extension tube be used
Lana - 3/29/2015 7:54:51 PM
facebooktwitter
answer image
Thank you for reaching out to us. This does not run on battery. Generally, we do not recommend using extension cords with this product.
Customer Care - 3/31/2015 12:17:46 AM
question image
I have misplaced the instruction booklet.  Where can I download a copy of this?
Kay Watman - 2/28/2015 5:39:44 PM
facebooktwitter
answer image
Please find the instructions in the product pdf.
Customer Care - 3/2/2015 6:23:29 AM
