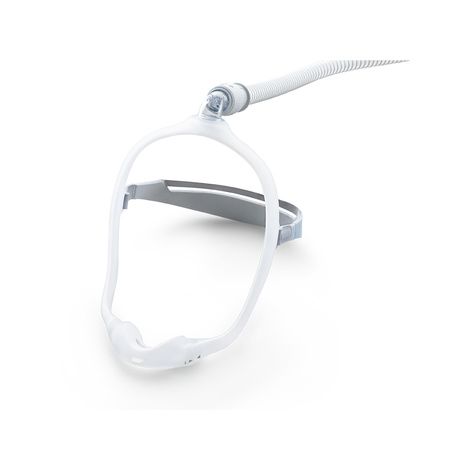

DreamWear Under The Nose Nasal CPAP Mask With FitPack

DreamWear Under The Nose Nasal CPAP Mask With FitPack

Brand/Manufacturer: RESPIRONICS
Hpfy Stores Save
Authorized Retailer Badge
  • FSA Approved

Same Day Shipping



DreamWear Under The Nose Nasal CPAP Mask is an innovative mask that uses a tubelike frame to deliver airflow directly to the nasal cushion. Its unique design offers many of the benefits of nasal and pillow masks to allow patients to have the best of both mask types. It is a minimal contact mask designed to help accommodate users multiple sleeping positions and delivers therapy by covering both nostrils.




Item # Desc Pkg Price
1116700 With Headgear Each
$192.89
$134.99

Features

  • DreamWear Under The Nose Nasal CPAP Mask allows freedom of movement and more comfort as patients feel like they are not wearing a mask at all
  • Remarkable design directs airflow through the frame so patients can sleep comfortably
  • Minimal contact under the nose cushion prevents red marks, discomfort or irritation in the nostrils
  • Cushion rests under the nose and seals both nostrils without needing to cover the entire nose
  • Unrestricted by cumbersome tubing, patients can sleep in any position they desire, on their stomach, side or back
  • Soft flexible silicone frame and fabric wraps provide a soft touch on the patient's cheek
  • Innovative tubelike frame is designed to allow airflow to pass through it to reach the nasal cushion
  • Frame is a single piece with connections for the hose elbow, headgear, and nasal cushion
  • If one side of the frame is closed by being laid on, the airflow can pass entirely through the other side without negatively effecting therapy pressure
  • Frames and cushions are interchangeable, so any size frame will fit any size cushion
  • Mask's design leaves line of sight open for reading and TV watching before bed
  • Frame is designed with the elbow at the crown of the head, allowing the hose to be routed above the user for optimal comfort
  • Mask's design helps alleviate tug on the front of the mask enabling a more stable seal during the night
  • Elbow is free to swivel inside the connection to help active sleepers maintain proper placement of the mask as sleeping positions change
  • Includes two fabric wraps which feature hook and loop fasteners for quick and easy placement on the mask frame
  • Fabric wraps are intended to be placed on the cheek portion of the frame to increase comfort and further help alleviate irritation
  • Not made with natural rubber latex
  • FitPack contents:
    - All Sizes of Cushion (1 Each: Small, Medium, Medium Wide and Large)
    - 1 Medium Frame
  • DreamWear Nasal CPAP Mask With FitPack User Guide

Fitting Instructions For DreamWear Nasal CPAP Mask

  1. Hold the sizing gauge horizontally under the nose and select the cushion size based on where the outer edge of the nostrils and tip of the nose contact the gauge
  2. The cushion opening will be directly under the nostrils. The cushion will hug the nose and leak will be minimal (At no time should the nose be inside the cushion opening. If any part of the cushion overlaps the nose, the cushion is being worn incorrectly)
  3. With the mask assembled, place the cushion under the nose
  4. Position the frame on the top of the head
  5. Pull the headgear over the back of the head
  6. To adjust the mask, peel the headgear tabs away from the fabric. Adjust the straps length. Press the tabs back against the fabric to reattach(Note: Do not over tighten the headgear)
  7. Position the mask until it fits comfortably. When finished, the elbow should rest at the top of the head
  8. Mask frame sizing
  9. The medium (MED) mask frame will comfortably fit most faces

Instructions



  1. Print out this Adobe PDF File at 100% on your printer. Use the print accuracy check at right to ensure printing at the proper size
  2. Fold the bottom part of this page on the dashed line
  3. Cut along the dotted line around the fitting gauge
  4. Place the fitting gauge on your nose
  5. Determine the appropriate size by which area your nose reaches (S - Small, M - Medium or L - Large)

Cleaning Tips



  • The parts of the mask excluding headgear should be hand washed daily using warm water and a mild soap.
  • Rinse the parts completely and allow to air dry out of direct sunlight. The headgear should be hand washed weekly in the same manner

How to Assemble and Disassemble DreamWear Nasal CPAP Mask?

Assembly

  1. Press the mask elbow into the frame until it is completely enclosed in the frame connection
  2. To connect the cushion, line up the arrow on the front with the arrow on the frame and push the two together until they are clicked into place, then repeat for the opposite side. Ensure the arrow on the cushion matches the arrow on the frame, as the cushion will not function as intended if not properly connected to the frame
  3. The headgear should be looped through the slots in the frame and fastened to desired tightness. The headgear should be attached so that both the Philips Respironics and DreamWear logos face outward

Disassembly

  1. The cushion can be removed by pulling the ends away from the frame
  2. Similarly, the mask elbow can be removed by simply pulling it out of the frame
  3. The headgear is removed by releasing the hook and loop fasteners and then removing it from the headgear slots of the frame
  4. If the frame wraps are installed, they can be removed by releasing the hook and loop fasteners
