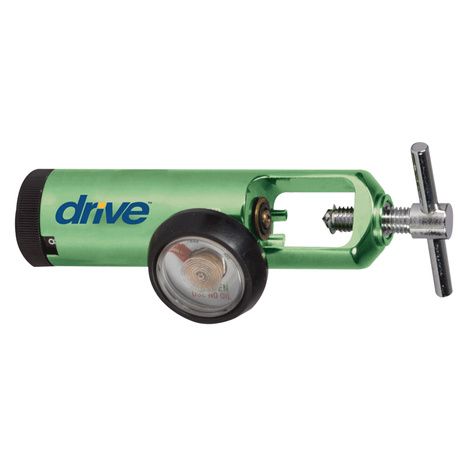

Drive 870 Oxygen Regulator
Drive 870 Oxygen Regulator

Drive 870 Oxygen Regulator

Brand/Manufacturer: DRIVE MEDICAL
Save
Authorized Retailer Badge

This product is on backorder and will be available to purchase once it is back in stock.

Drive 870 Oxygen Regulator is pressure reducing device which lowers oxygen pressure form a cylinder, to levels that can be safely used by the end user. This regulator has easy to operate single selector knob and comes with a lightweight uni-body design. It also features a protective contents gauge and a built-in pressure relief valve for safety. This regulator is to be used with M2, M6, ML6, B, C, D, E cylinders.



Features



  • Drive 870 Regulator features barb outlet
  • Lightweight and durable design
  • Meet or exceed accuracy standards for ASTM, American National and CGA
  • Inlet Pressure: 300 to 3,000 PSI
  • Outlet pressure: 50 PSI
  • Connection: CGA 870
  • UL Approved
  • Intended for the administration of oxygen to patients who need increased oxygen levels to improve their breathing conditions
  • Liter flow increments:
    - Adult (18301G): 0.12, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6 and 8
    - Adult (18302GN): 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 12 and 15
  • Color: Green

More Information

  • Usage:
    - Be sure the regulator is in the "off" position by rotating the knob counterclockwise to the "0" position
    - For safety, be sure you are not directly in front of or behind the regulator when opening the cylinder valve
    - SLOWLY turn the cylinder valve (counter clockwise) about one full turn
    - If you can hear a hissing sound, there is a leak in the system
    - Turn the cylinder off and turn the regulator on to relieve any built up pressure
    - Try tightening the regulator to the cylinder and opening the cylinder again
    - If this does not help, shut the system down again and contact a service representative
    - NEVER attempt to repair a regulator or cylinder yourself

Warranty

3 year limited warranty
