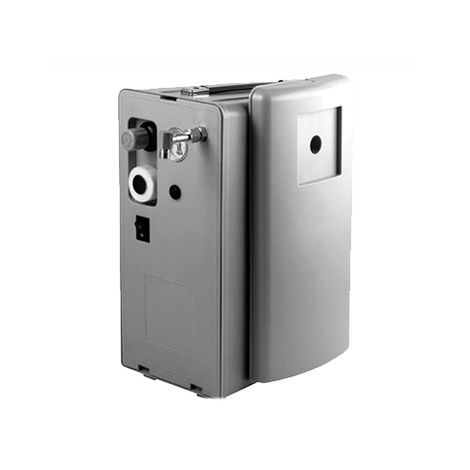

Drive CHAD 50 PSI Compressor

Drive CHAD 50 PSI Compressor

Brand/Manufacturer: DRIVE MEDICAL
Hpfy Stores Save
Authorized Retailer Badge
  • FSA Approved

Drive CHAD 50 PSI Compressor is designed for the most efficient, continuous high pressure performance. The compressor provides the high pressure which clinical studies have indicated is required for optimal particle size 2 microns or less. It operates quietly and effectively due to the unique design of the WOB-L piston. It is easy to clean, very low maintenance, compact, light-weight, and portable.

Item # Desc Pkg Price
18450 15" L x 10-5/8" W x 18.1" H Each
$844.45
$703.69

Features

  • Drive CHAD 50 PSI Compressor Powered by standard home current makes its operation easy and practical for home and hospital use with most makes of aerosol generators such as:
    - Compatible with hand-held nebulizer system
    - Heated nebulizer
    - Dual action humidifier/nebulizer
    - Pediatric mist tent
    - High output pneumatic nebulizer
    - Deluxe nebulizer with oxygen diluter
    - Child / adult mist tent
  • Ultra-powerful compressor for both humidification and high flow, high pressure nebulization of viscous medication
  • Optimizes medication delivery by aerosolizing to a particle size of less than 2 microns
  • Easy to read pressure gauge
  • Detachable door protects componentry
  • Click Here For User Manual
  • Note:
    - This product requires a prescription from a licensed medical professional.
    - Prescription can be faxed to 1.203.616.2851 or emailed to prescription@hpfy.com.

More Information

  • Safety Precautions
    - When using electrical products, especially when children are present, basic safety precautions should always be followed
  • Read all instructions before using
    -Urgent safety information for hazards that will cause serious injury or death
    - Important safety information for hazards that might cause serious injury
    - Information for preventing damage to the product
    - Information to which the user should pay special attention
  • Initial Positioning And Installation
    - Select a suitable location for the unit near a 120 VAC / 230VAC, grounded power Outlet
    - Grasp handle on top of cabinet and position the unit so that operating controls are Accessible to the user and back of unit is away from wall
    - Make certain that the power switch located in the center of the control panel is in the OFF position and plug power cord into grounded power outlet or grounded adapter
    - Be certain that all connections to outlet ( i.e. tubing , nebulizers , etc.) are snug and not leaking aerosol
    - When used in conjunction with mist tents, etc., place unit outside of tent and place unit at a level below discharge end of the delivery tubing
  • Operation
    - Press Power On/Off switch to ON position
    - To check the pressure that the compressor is delivering occluded outlet or connect equipment the user intend to use with the compressor . Pressure can be adjusted with regulator and observing pressure gauge as follows
    • Pull regulator knob out to unlock adjustment
    • Turn dial of regulator to desired pressure. -clockwise - increase pressure -counterclockwise - decrease pressure
    • Push knob towards unit locking regulator pressure
  • Routine Maintenance Removing And Cleaning The Filter
    - Pull air intake filter out from front of unit and replace with a new one when dirty
    - Do not wash it
    - Caution Do not submerge in water as this will result in damage to the compressor
  • Powered by standard home current makes its operation easy and practical for home and hospital use with most makes of aerosol generators such as
    - Compatible with hand-held nebulizer system.
    - Heated nebulizer.
    - Dual action humidifier/nebulizer.
    - Pediatric mist tent.
    - High output pneumatic nebulizer.
    - Deluxe nebulizer with oxygen diluter.
    - Child / adult mist tent.

Specification

Particulars

Dimensions

Electrical Requirements

115 VAC 60Hz

Pressure Range

0~50 PSI

Flow Rate Range

11~41 LPM

Power Consumption (W) @ 0 PSI

170

Operating Temperature range

50° F~ 104° F

Operating Relative Humidity

95% Maximum

Storage & Transport Temperature/Relative Range

room condition preferred

Circuit Breaker

5A 125/250 VAC

Sound Level

< 60 dBA

Size

15" L x 10-5/8" W x 18.1" H

Equipment Classifications

With respect to protection from Electrical shock Class



Flow rate pressure

PSI LPM
0 41
10 34
20 27
30 22
40 16
50 11

Warranty

1 year limited warranty
