Graham-Field DigiO2 Finger Pulse Oximeter
Graham-Field DigiO2 Finger Pulse Oximeter

Graham-Field DigiO2 Finger Pulse Oximeter

  • FSA Approved
  • Made in USA

Same Day Shipping

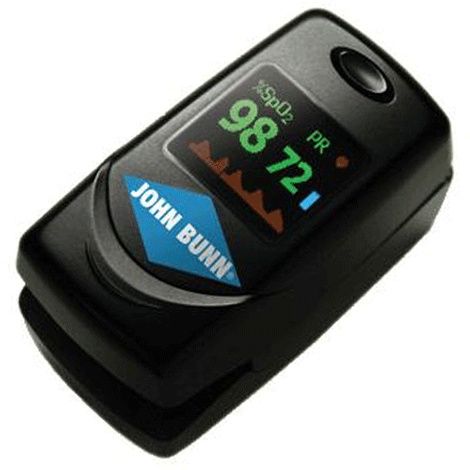

Graham-Field DigiO2 Finger Pulse Oximeter provides fast, reliable and accurate oxygen saturation (SpO2), pulse rate, perfusion index (or pulse strength) measurements and bar-graph display. It has multi-directional display which makes readings viewable from any angle. The compact design makes it an ideal solution for EMS, hospital and clinical settings as well as for home use.

Item #DescPkgRewardPrice
JB02007 Black, 2.59" x 1.42" x 1.3" (66mm x 36mm x 33mm) Each $11.96
$310.99
$239.19

Features

  • Graham-Field John Bunn DigiO2 Finger Pulse Oximeter is lightweight, pocket size solution
  • Large LED color display allows for easy-to-see day or night use
  • Simple one-button operation
  • Automatic power on and off function (shuts off after 8 seconds of non-operation to conserve batteries)
  • Difference between the values measured in the condition of indoor natural light and that of a darkroom is less than ± 1%
  • Power supply requirement: Two (2) 1.5V AAA alkaline batteries (included)
  • Weight: 60g (including batteries)
  • Includes:
    - 1 DigiO2 Finger Pulse Oximeter
    - 1 lanyard
    - 1 pouch
    - 2 AAA alkaline batteries
    - 1 user manual

More Information

  • Cleaning and Disinfection:
    1. Do not immerse the device in liquid. Clean the device only by using a surface-clean technique: Wipe with a clean, soft cloth saturated with a solution of 75% isopropyl alcohol. If low-level disinfection is required, wipe with a 1:10 bleach to water solution.
    2. Wipe with a clean, soft cloth saturated with clean water and air dry, or dry with a clean, soft cloth.
    - Caution: Do not sterilize with irradiation, steam, or ethylene oxide.
    - Caution: Do not disinfect with high temperature or high pressure steam.
    - Caution: Do not use the sensor if it is damaged.
Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specification

Particulars Details
Display Range SpO2: 35% to 99%
Pulse Rate: 25 to 250 bpm
Perfusion Index: 0.2% - 20%
Accuracy (% SpO2)75% to 99% ± 2%
50% to 75% ± 3%
Pulse Rate Accuracy25 to 250 bpm ± 2bpm
Perfusion Index0.2% to 2% ± 0.1%
2% to 10% ± 1%
10% to 20% ± 2%
AlarmsAudible and visual alarms for Low Battery, Low SpO2, High Pulse Rate, Low Pulse Rate
Pre-set Alarm Limits:
Low SpO2:90%
Low Pulse Rate:50bpm
High Pulse Rate:120bpm
StorageTemperature: -4°F to 131°F (-20ºC to 55ºC)
Relative humidity: < 95%
Environmental RequirementsOperation:
Temperature: 41°F to 104°F (5°C to 40°C)
Relative humidity: 30% to 80%
Atmospheric pressure: 10.15 psi to 15.37 psi (70kPa to 106kPa)

Warranty

1 year warranty
