Sammons Preston Economy Finger Pulse Oximeter

Sammons Preston Economy Finger Pulse Oximeter

  • FSA Approved

Sammons Preston Economy FingerPulse Oximeter is ideal for those with respiratory or cardiovascular conditions or children with asthmaand wheezing. It is frequently used in hospitals and clinics to measure SpO2,pulse rate, pulse bar, and plethysmogram. The oximeter delivers precisereadings in seconds and the digital display lights up for easy readings in alllighting conditions.



Sammons Preston Economy Finger Pulse Oximeter Highlights:

  • Dimensions: 2.25"L x 1.25"W x 1.5"H
  • Measures blood-oxygen saturation and pulse rate
  • Small and lightweight (28 gms without batteries)
  • Indicates low battery
  • Clip Sensor



Item # Desc Pkg Price
81560630 2.25"L x 1.25"W x 1.5"H Each
$115.75
$82.69

Economy Finger Pulse Oximeter Features

How to Operate Economy Finger Pulse Oximeter

  • Operation Instruction
    - Install two AAA batteries into battery cassette before closing its cover.

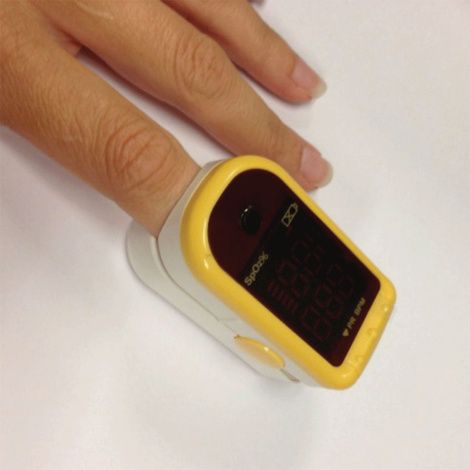

    - Place clamp over finger nail.
    - Insert one finger into the rubber hole of the Oximeter fully.
    - Press the switch for one time on the front panel.
    - Finger and body should not tremble during measuring.
    - Read corresponding data on the display screen.
  • Note
    - Please use the medical alcohol to clean the rubber, inside the Oximeter, that touches the finger. Also, clean the test finger with alcohol before and after each test. (the rubber inside the Oximeter is medical rubber, which has no toxins, and is not harmful to the skin).
  • When your finger is inserted into the Oximeter, your nail surface must be upward.

Specification

Particulars Specifications
Display Type LED
SpO2
Measurement range 70%~99%
Accuracy 80%~99% ±3%; =69 no definition
Pulse Rate
Measure range 30bpm~235bpm
Accuracy 30bpm~99bpm, ±2%
Pulse Intensity Bargraph Indicator

Power Requirements

Two AAA alkaline Batteries

Power consumption Less than 40mA
Battery Life Two AAA 1.5V, 600mAh alkaline batteries could be continuously operated as long as 30 hours

Environment Requirements

Operation Temperature 5°C
Storage Temperature -20°C
Ambient Humidity =80% no condensation in operation
=93% no condensation in storage

Dimensions

Length 56mm ~ 62mm
Width 32mm ~ 38mm
Height 34mm ~ 38mm
Weight 45g ~ 60g (including two AAA baateries)
