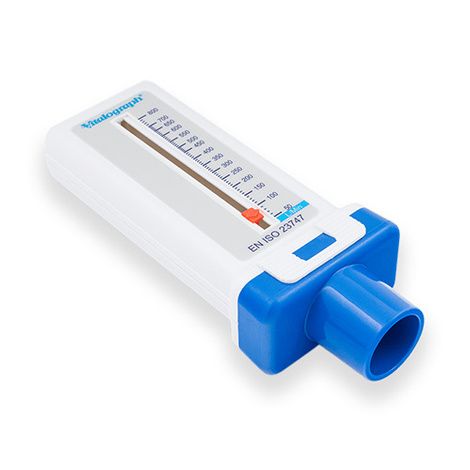

Vitalograph asmaPLAN Peak Flow Meter

Vitalograph asmaPLAN Peak Flow Meter

Brand/Manufacturer: MISCELLANEOUS
Hpfy Stores Save

The Vitalograph AsmaPLAN Peak Flow Meter aids in asthma diagnosis. It comes with an integrated mouthpiece that is pleasant for both adults and children. The Peak Flow Meter is a precise, compact, light, and portable flow meter. The measuring range is 50 to 800 liters per minute. Peak flow is closely monitored to safeguard the patient's quality of life while simultaneously maximizing drug efficacy. It boasts a sturdy design and easy-to-read scale marks.



Item # Desc Pkg Price
43602 34 x 60 x 150 mm Each
$40.55
$28.99

Vitalograph Peak Flow Meter Features

  • Conforms to relevant standards for peak flow meters
  • Robust design
  • Peak Flow Meter Readings are easy to read
  • The measuring range is 50-800L/min
  • Accurate, lightweight, and portable asthma monitor
  • Compatible with Bacterial Viral Filters (BVFs)
  • 0°C to 50 °C storage
  • Suitable for adults and children
  • A/B difference less than 15 L/min/15% frequency response
  • Comfortable integral mouthpiece



What to buy with AsmaPLAN Peak Flow Meter



When to use Peak Flow Meter?

  • This device measures peak expiratory flow (PEF) for use on adults and pediatrics.
  • It can be used with five years and older.
  • In primary care clinics, hospitals, and at home.
  • It is advisable to use the Peak Flow Meter under the supervision of a healthcare professional.



How to use AsmaPLAN Peak Flow Meter?



  • Firstly, slide the pointer to the bottom of the scale.
  • Hold the device horizontally in front of your mouth.
  • Inhale as deeply as possible.
  • Seal the mouthpiece firmly with your lip
  • Blow out as hard and as fast as possible for a second or longer.
  • Take care that tongue or teeth do not obstruct the airflow. A ‘spitting’ action or coughing will give false readings.
  • Take note of the reading.
  • Repeat the above steps three times and record the highest reading.
  • Take action according to your personal asthma management plan.



How to clean Vitalograph Peak Flow Meter?



  • Clean the outer surfaces after use.
  • It is recommended to use an ordinary alcohol wipe (IPA 70%).
  • Pay special attention to the mouthpiece area and clean it properly to avoid further infection problems.
  • Store in a clean, dry place.


Instruction Guide for Vitalograph asmaPLAN Peak Flow Meter

Vitalograph 43602 Peak Flow Meter Specifications

Dimension 34 x 60 x 150mm
Weight 74g
Measurement range 50-800L/min
